frp搭建

frps安装配置

frps 通常位于云主机或具备公网 ip 的主机上

wget https://github.com/fatedier/frp/releases/download/v0.67.0/frp_0.67.0_linux_amd64.tar.gz
tar -zxvf frp_0.67.0_linux_amd64.tar.gz

# 目录重命名
mv frp_0.67.0_linux_amd64 frp

# 删除 frpc
cd frp
rm frpc* -rf

frps.toml 配置

bindAddr = "0.0.0.0"
bindPort = 7000

# 服务端web控制台配置
webServer.addr = "0.0.0.0"
webServer.port = 7500
webServer.user = "admin"
webServer.password = "admin123"

log.to = "/frpslog/frps.log"
log.level = "debug"
log.maxDays = 3

#auth.method = "token"
#auth.token = "token123"

allowPorts = [
{ start = 6000, end = 7000},
]

token、password、allowPorts 自行修改

下载systemd

这里用的是python3.8+mason0.45.1

git clone https://github.com/systemd/systemd.git --branch=v237
cd systemd
sudo apt install m4 -y
sudo apt install libcap-dev -y
sudo apt install libmount-dev -y
sudo apt install gettext -y
./configure
make

服务安装

编写服务配置文件：/etc/systemd/system/frps.service

[Unit]
Description = frp server
# 关键：确保网络就绪后再启动（比 network.target 更严格，避免网络未通导致启动失败）
After = network-online.target syslog.target
Wants = network-online.target  # 依赖网络完全就绪

[Service]
Type = simple
# 启动frps的命令，需修改为您的frps的安装路径
ExecStart = /home/ctf/frp/frps -c /home/ctf/frp/frps.toml

StandardOutput=journal
StandardError=journal

# 可选：若启动失败，自动重启（增加容错）
Restart=always
RestartSec = 5

[Install]
# 关键：自启动目标必须正确（Ubuntu 默认多用户目标）
WantedBy = multi-user.target

保存后刷新配置文件

​systemctl daemon-reload​

启动服务

​systemctl start frps​

检查服务状态

​systemctl status frps​

frpc安装配置

frpc 通常位于内部主机，不具备公网 ip 的主机上

这里以windows为例

https://github.com/fatedier/frp/releases/frp_0.67.0_windows_amd64.tar.gz

frpc.toml 配置

serverAddr = "公网ip"
serverPort = 7000

[transport]
tls.enable = true

#auth.method = "token"
#auth.token = "token123"

[[proxies]]
name = "mysql"
type = "tcp"
localIP = "127.0.0.1"
localPort = 3306
remotePort = 6001

启动

​frpc.exe -c frpc.toml​

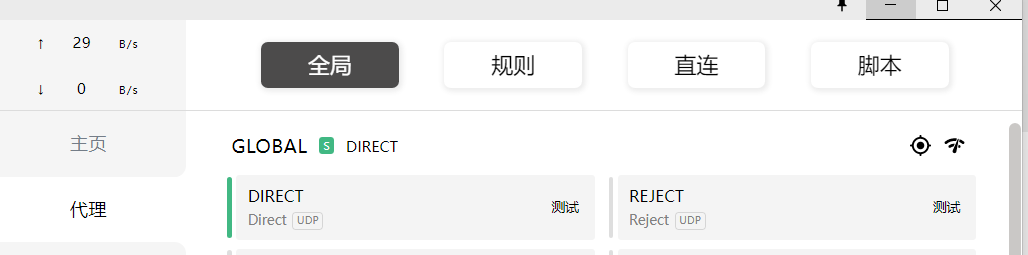

这里注意一下，要开全局代理

‍
